Coppeliasim避障自走車

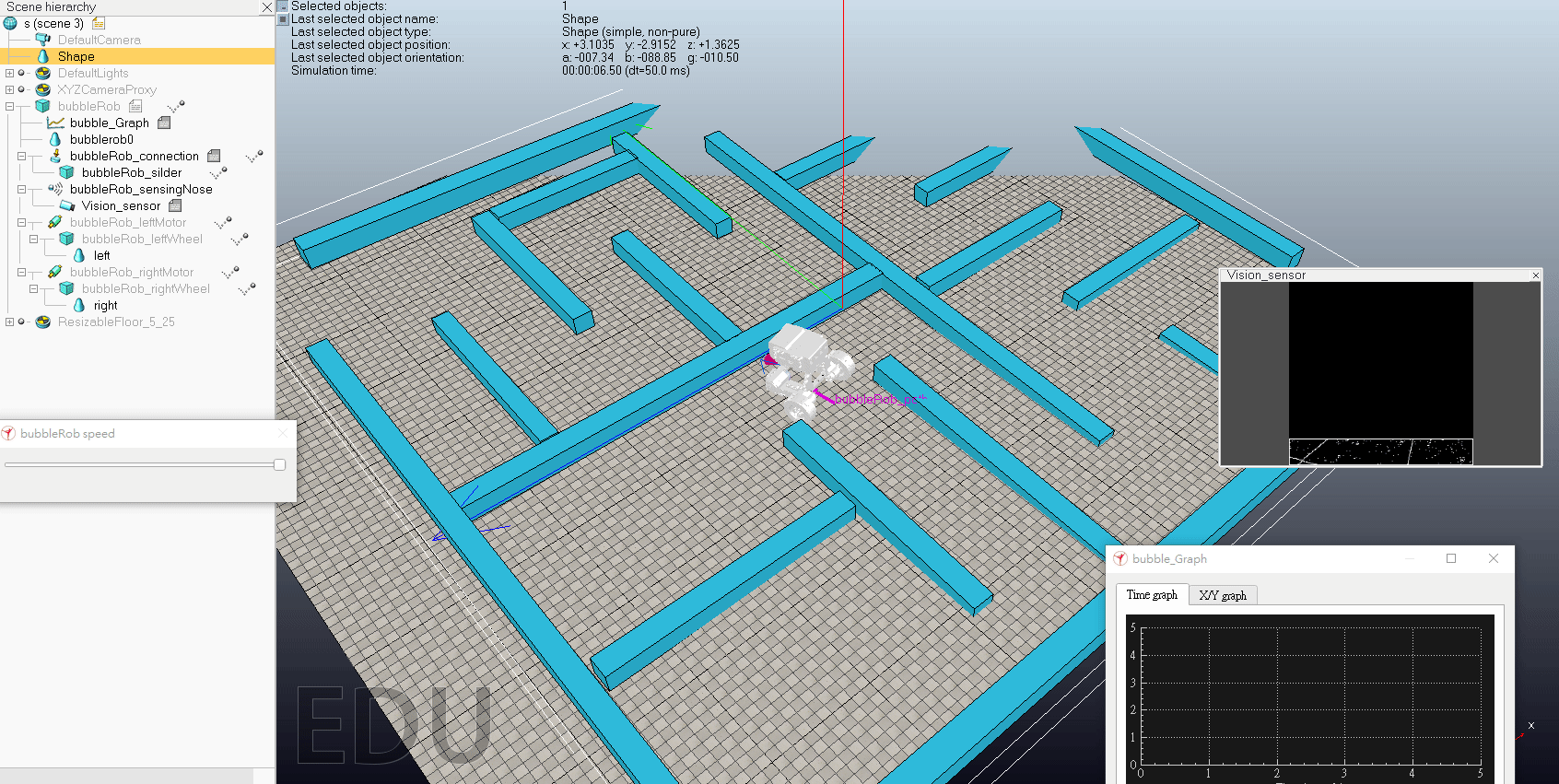

模擬影片
(🔽程式碼)
function sysCall_init()


end

function sysCall_actuation()

end

function sysCall_sensing()

end

function sysCall_cleanup()

end



function sysCall_afterDelete(inData)
    for key,value in pairs(inData.objectHandles) do
        print("Object with handle "..key.." was deleted")
    end

end

function sysCall_afterCreate(inData)
    for key,value in pairs(inData.objectHandles) do
        print("Object with handle "..value.." was created")
    end
end
--]]
function speedChange_callback(ui,id,newVal)
    speed=minMaxSpeed[1]+(minMaxSpeed[2]-minMaxSpeed[1])*newVal/100
end

function sysCall_init()

    bubbleRobBase=sim.getObjectAssociatedWithScript(sim.handle_self)
    leftMotor=sim.getObjectHandle("bubbleRob_leftMotor")
    rightMotor=sim.getObjectHandle("bubbleRob_rightMotor")
    noseSensor=sim.getObjectHandle("bubbleRob_sensingNose")
    minMaxSpeed={120*math.pi/180,300*math.pi/180}
    backUntilTime=-1

        xml = '<ui activate="false" closeable="false" resizeable="false" title="'..sim.getObjectName(bubbleRobBase)..' speed">'..[[
        <hslider id="1" maximum="100" minimum="0" onchange="speedChange_callback"></hslider>
        <label style="* {margin-left: 300px;" text=""></label>
        </ui>
        ]]
    ui=simUI.create(xml)
    speed=(minMaxSpeed[1]+minMaxSpeed[2])*1
    simUI.setSliderValue(ui,1,100*(speed-minMaxSpeed[1])/(minMaxSpeed[2]-minMaxSpeed[1]))
end

function sysCall_actuation()
    result=sim.readProximitySensor(noseSensor)

    if (result>0) then backUntilTime=sim.getSimulationTime()+4 end

    if (backUntilTime<sim.getSimulationTime()) then

        sim.setJointTargetVelocity(leftMotor,speed)
        sim.setJointTargetVelocity(rightMotor,speed)
    else

        sim.setJointTargetVelocity(leftMotor,-speed/5)
        sim.setJointTargetVelocity(rightMotor,-speed/200)
    end
end

function sysCall_cleanup()
    simUI.destroy(ui)
end
